MANUAL RATCHET PIPE THREADER
Model: SV-25
Machine Details:
Size:
1/2", 3/4", 1"
Die:
1/2", 3/4", 1" NPT/BSPT
Weight:
Approx. 5 Kg
Model: SV-50
Machine Details:
Size:
1/2", 3/4", 1", 1¼", 1½", 2"
Die:
1/2", 3/4", 1", 1¼", 1½", 2" NPT/BSPT
Weight:
Approx. 12 Kg
Model: SV-32 M
Machine Details:
Size:
1/2" to 1¼" (15-32mm)
Application:
MS, GI Pipe
Motor:
1700 W Universal
Supply:
220V, 50/60 Hz
RPM:
Fwd 28 / Rev 51
Weight:
15 Kg
Model: SV-50 M
Machine Details:
Size:
1/2" to 2" (15-50 mm)
Application:
MS, GI Pipe
Motor:
1700 W Universal
Supply:
220V, 50/60 Hz
RPM:
Fwd 28 / Rev 51
Weight:
25 Kg

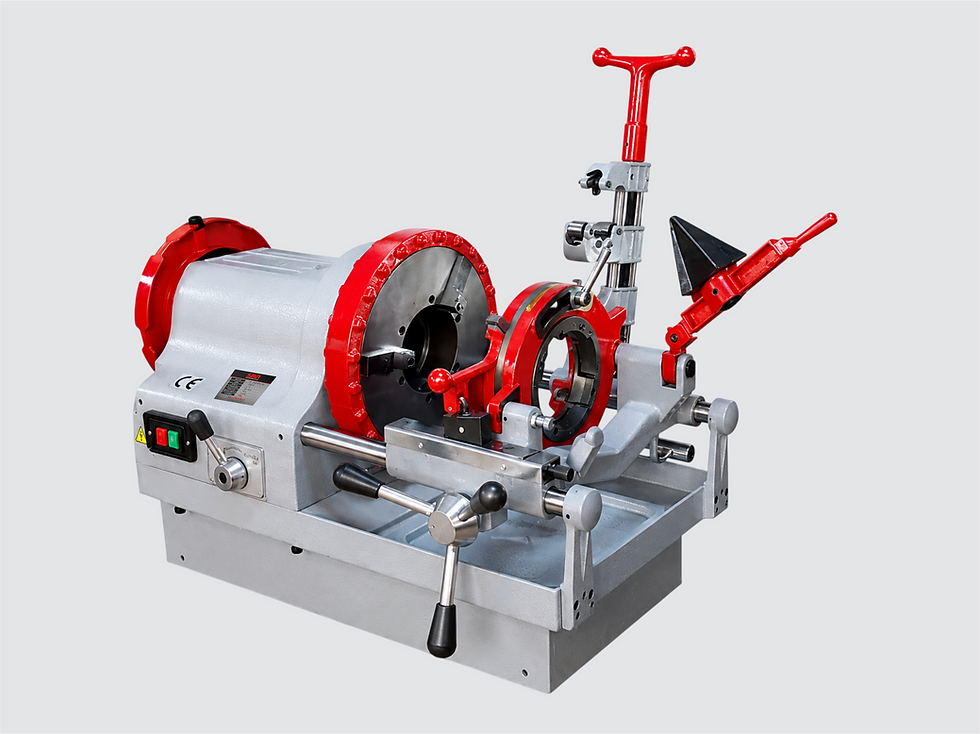

ELECTRIC PIPE THREADING MACHINE
Model: SV-A2-50
Capacity:
1/2" to 2" (15 mm to 50 mm)
Thread Application:
(MS) Pipe, (GI) Pipe, (SS)
Moter Power:
900W / 1100W (Single Phase)
Power Supply:
220V, 50/60 Hz
Speed: 28 RPM
Weight: 75 Kg. / 70 Kg.
Lubrication: Auto-Oiling System
Model: SV-L2-50A
Capacity:
1/2" to 2" (15 mm to 50 mm)
Thread Application:
(MS) Pipe, (GI) Pipe, (SS)
Moter Power:
900W / 1100W (Single Phase)
Power Supply:
220V, 50/60 Hz
Speed: 28 RPM
Weight: 75 Kg. / 70 Kg.
Lubrication: Auto-Oiling System
Model: SV-A3-80
Thread Application:
(MS) Pipe, (GI) Pipe, (SS) Pipe Optional
Capacity:
1/2” to 3” (15mm to 80mm)
Moter Power:
900w/1110w with induction 50/60 HZ
Switch:
ON/OFF Heavy duty switch
Speed:
11/24 RPM
Weight:
125kg/110kg
Lubrication: Auto-Oiling System
Model: SV-A4-100
Thread Application:
(MS) Pipe, (GI) Pipe, (SS) Pipe Optional
Capacity:
1/2” to 4” (15mm to 100mm)
Moter Power:
900w/1110w with induction 50/60 HZ
Switch:
ON/OFF Heavy duty switch
Speed:
10/22 RPM
Weight:
165kg/140kg
Lubrication: Auto-Oiling System
Model: SV-A6-150
Thread Application: (MS) Pipe, (GI) Pipe, (SS) Pipe Optional
Capacity:
2” to 6” (65mm to 150mm)
Moter Power:
900w/1100w with induction 50/60 HZ
Switch:
ON/OFF Heavy duty switch
Speed:
9/24 RPM
Weight:
250kg/180kg
Lubrication: Auto-Oiling System
Model: SV-T2-50
Thread Application:
(MS) Pipe, (GI) Pipe, (SS) Pipe Optional
Capacity:
1/2" to 2" (15 mm to 50 mm)
Moter Power:
750w incduction 50/60 Hz
Switch:
ON/OFF Heavy duty switch
Speed:
27 RPM
Weight:
74kg / 70kg
Lubrication: Auto-Oiling System
Model: SV-C2-51
Thread Application:
(MS) Pipe, (GI) Pipe, Conduit
Capacity:
C15 to
C51 mm
Moter Power:
900w/1110w with induction 50/60 HZ
Switch:
ON/OFF Heavy duty switch
Speed:
28 RPM
Weight:
75kg / 70kg
Lubrication: Auto-Oiling System
Model: SV-BT-33
Thread Application: Round Bar
Capacity:
10mm to 33mm
Moter Power:
900w/1100w with induction 50/60 HZ
Switch:
ON/OFF Heavy duty switch
Speed:
28 RPM
Weight:
80kg / 70kg
Lubrication: Auto-Oiling System
